FATEK

FATEK FB Series

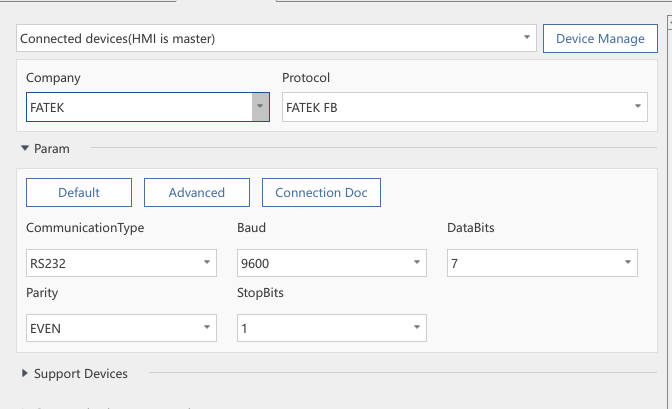

The communication parameters between the HMI and PLC are RS232, 9600, 7, 1, EVEN, and ensure that the communication between the screen and PLC is normal.

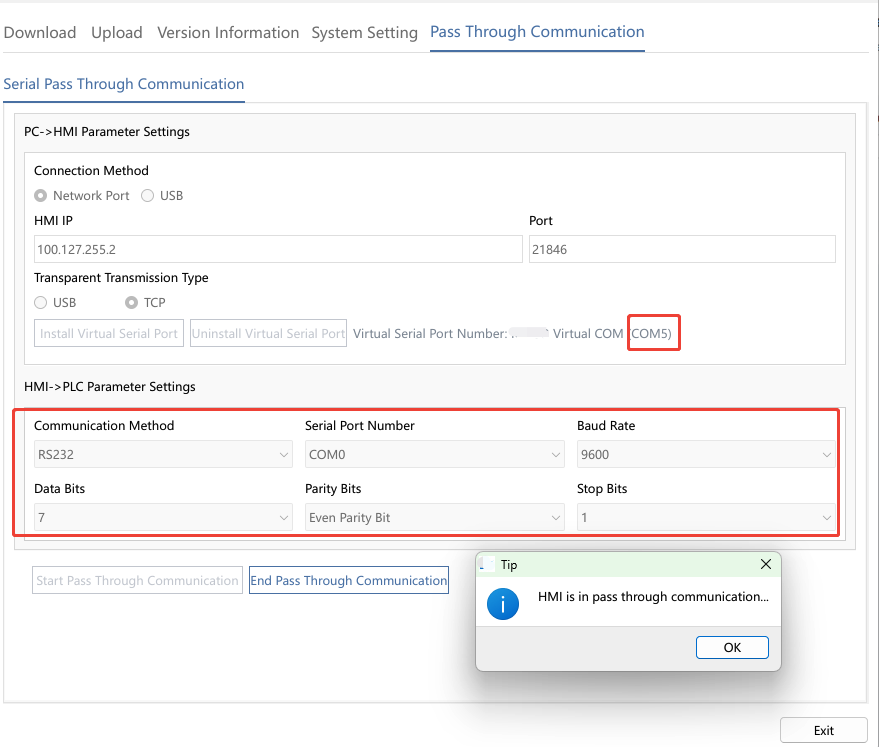

HMI-Tools sets the communication parameters between HMI and PLC, and click Start Pass Through Communication

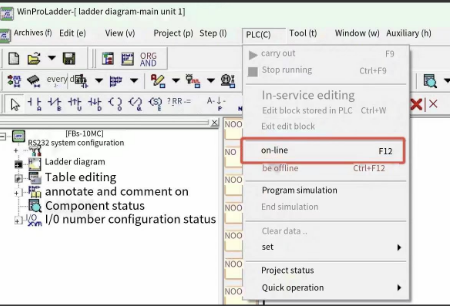

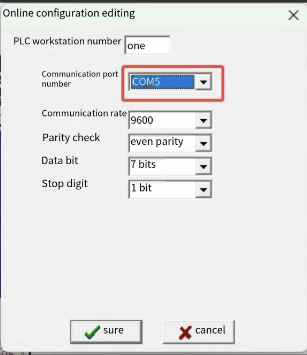

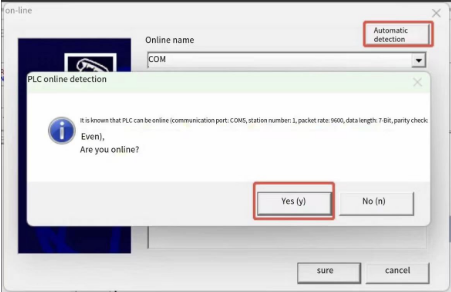

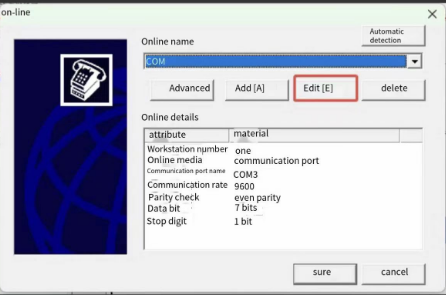

Open PLC software
